product key technologies

This glass door display cooler features a bottom-mounted compressor design, ensuring a stable center of gravity and excellent heat dissipation.
The glass door display cooler height ranges from 1.8 to 2.2 meters, and the length ranges from 1.5 to 4 meters. It has an effective volume of 300–700 liters and a temperature range of 2 ℃ to 8 ℃. The cabinet features a glass door design (single, double, or multiple doors available) with a light transmittance of ≥91% and is equipped with LED lighting for optimal product display.
The refrigeration system uses a fully enclosed compressor with a COP value of ≥2.2, resulting in an average daily power consumption of ≤6 kWh, significant energy savings, and an operating noise level of ≤50 dB. The interior is made of stainless steel for easy cleaning, and the shelves are height-adjustable to accommodate products of different sizes.

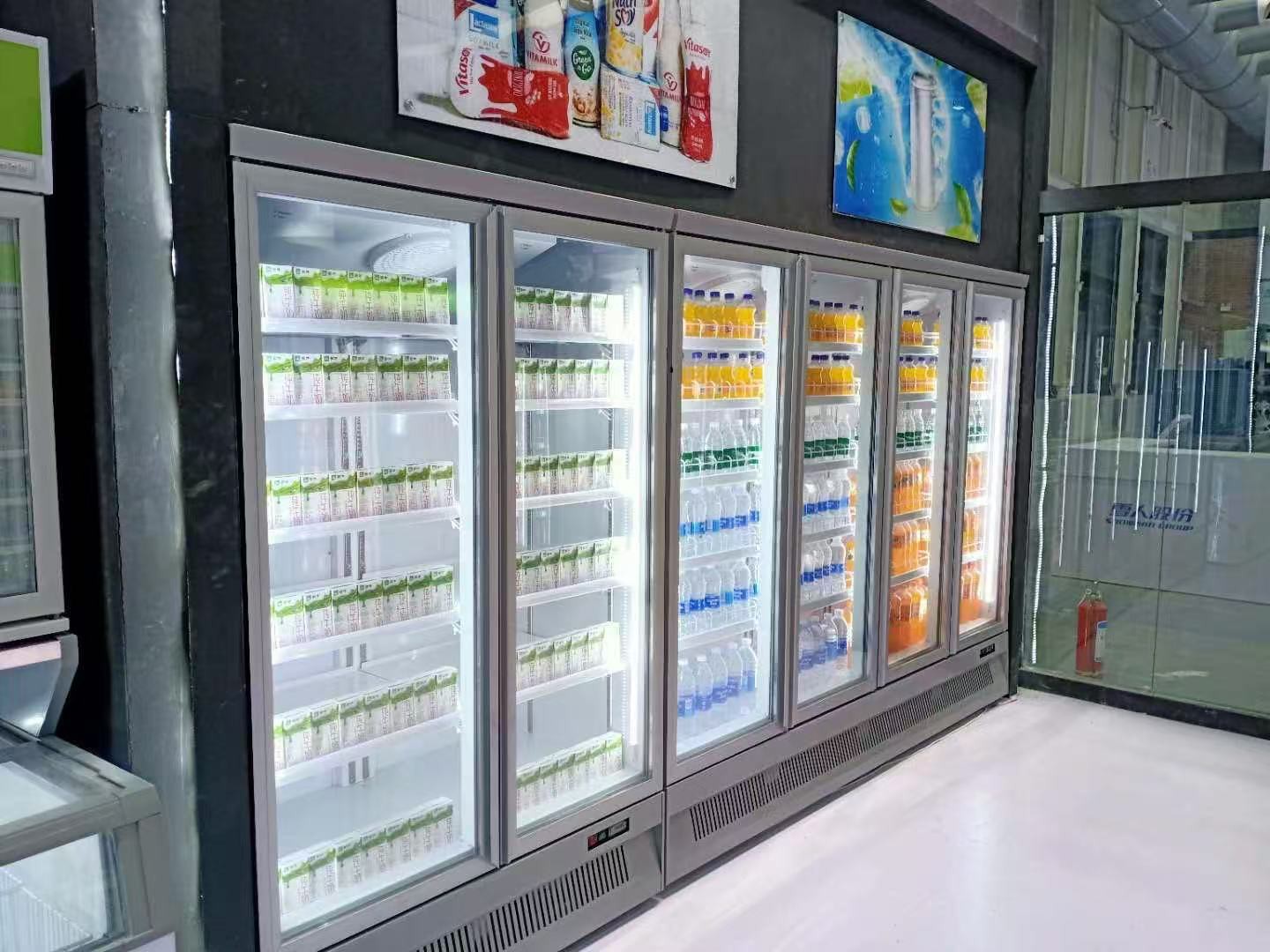

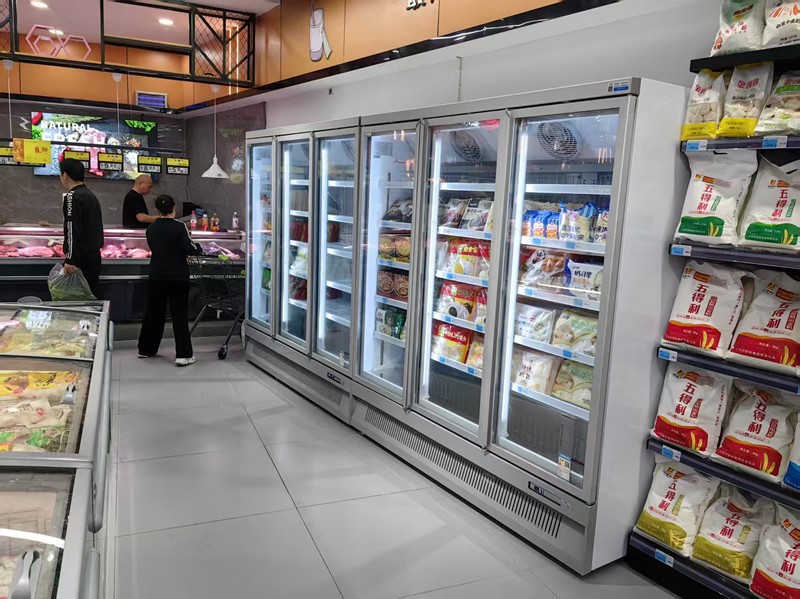

It is suitable for dairy and beverage sections in supermarkets. One supermarket reported a 30% improvement in heat dissipation efficiency and a 25% reduction in failure rate after adopting this equipment. Ventilation openings at the cabinet bottom facilitate cleaning and heat dissipation, and custom glass door designs are available to enhance the supermarket's brand image.

Specification
|
BASIC DATA |
Product Name |
Grocery store Semi-Vertical Fridge Cabinets |
|
|
Model |
C-VICH03A |
C-VICH03A-Heating |
|
|
Type |
Plug-in |
||
|
Temperature range(℃) |
3~8℃ (25℃,60%RH) |
||
|
External dimensions(mm) |
901*609*1575 |
901*609*1575 |
|
|
End panel |
Steel sheet with glass, thickness in 30mm |
||
|
Effective Volume (L) |
173 |
173 |
|
|
Display area (㎡) |
0.85 |
0.85 |
|
|
CABINET DATA |
Exterior/color |
Galvanized sheet + Aluminum alloy powder coating |
|
|
Front end height (mm) |
535 |
||
|
Inside shelf |
Three stories of adjustable shelves with LED |
||
|
REFRIGERATION SYSTEM |
Compressor |
SECOP(DANFOSS) |
|
|
Refrigerant |
R404A |
||
|
Evaporators |
Copper Tube with aluminum fins |
||
|
Condenser |
Copper Tube with aluminum fins |
||
|
Throttle modes |
Capillary |
||
|
Temperature control |
Digital Thermostat |
||
